Auto Tissue Sense Technology

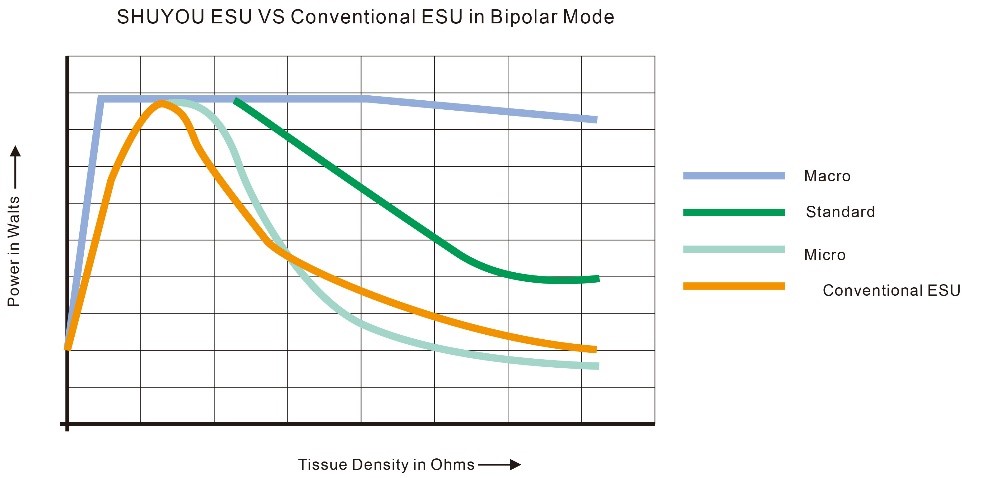

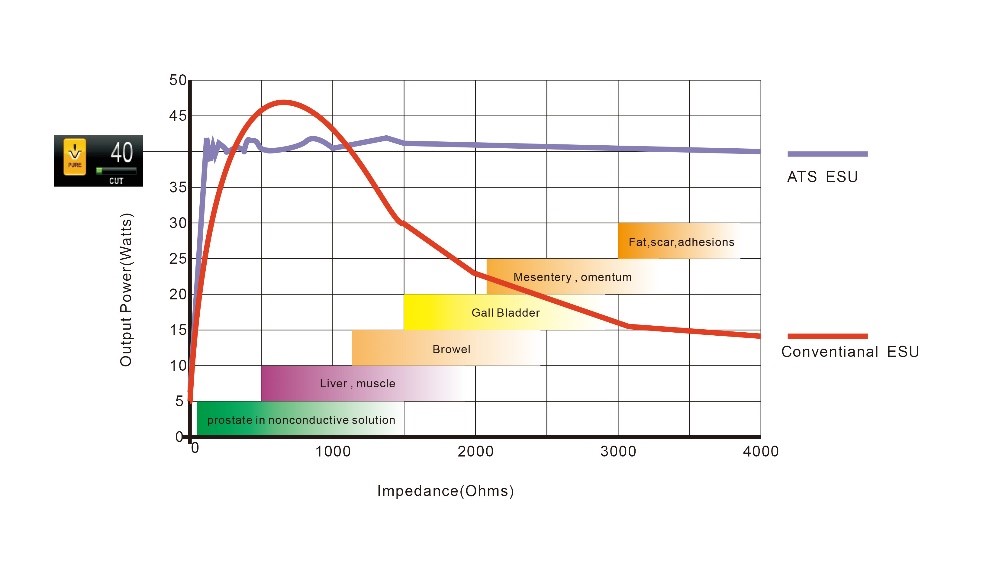

ATSTM technology features an advanced feedback system that controlled Electrosurgical Technology. The system maintains the set power over a wider range of tissue by sensing -voltage, current, power, tissue density, patient return electrode monitoring, and leakage RF current- at “2000 TIMES” per second.

Features:

• Minimizes dragging of electrodes in different tissues

• No need to adjust the power setting as the tissue changes

• 50% less thermal damage than conventional ESU’s

• Minimizes the patient recovery time

• Reduces the risk of collateral tissue damage

• Reduces the risk of neuromuscular stimulation

• Less charring and sparking hence precise & clean cutting

Wide Beam Coagulation

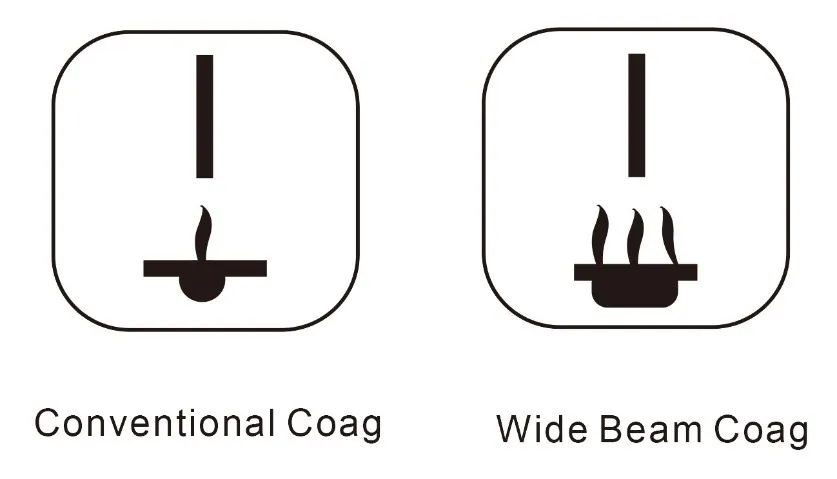

In conventional spray coagulation, the beam tends to follow the same path left by the previous spark resulting in non-uniform coagulation over a larger area. By randomizing spray frequency & amplitude, spark tends to take multiple paths covering a larger area.

Feature:

•  Starts the sparking from a longer distance

•  Uniform & homogeneous coagulation over the large surface area at lower power settings

•  Less tissue necrosis & carbonization

•  Increases the speed of coagulation

•  Reduces the output voltages

•  Drastically improves the performance when combined with Argon enhanced ESUs

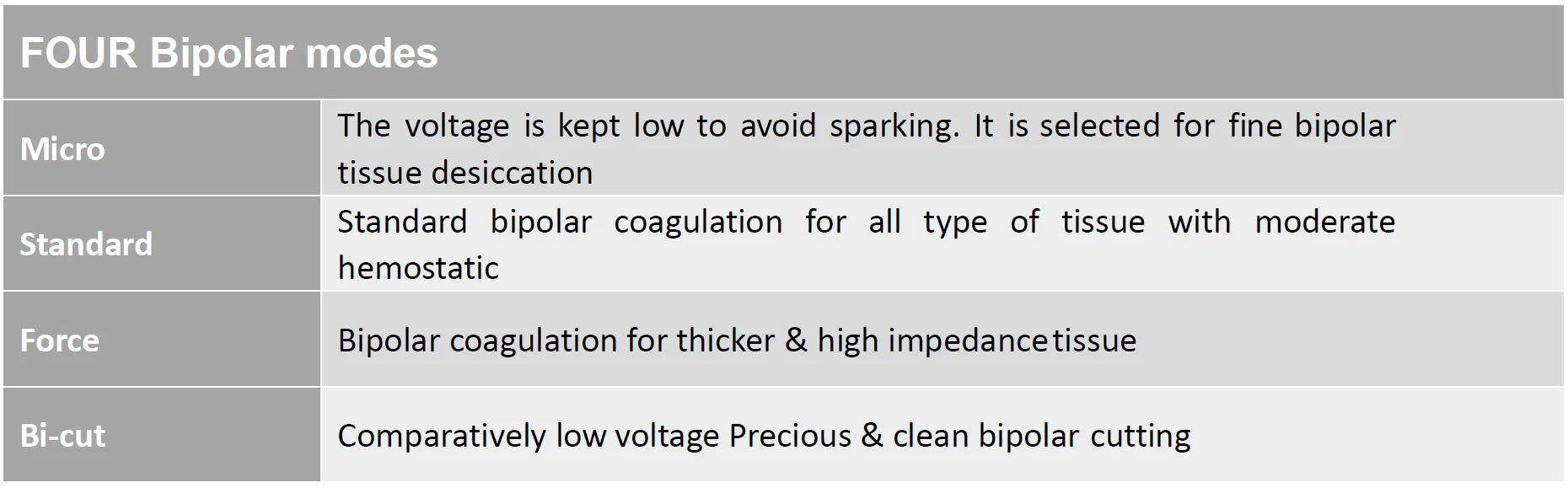

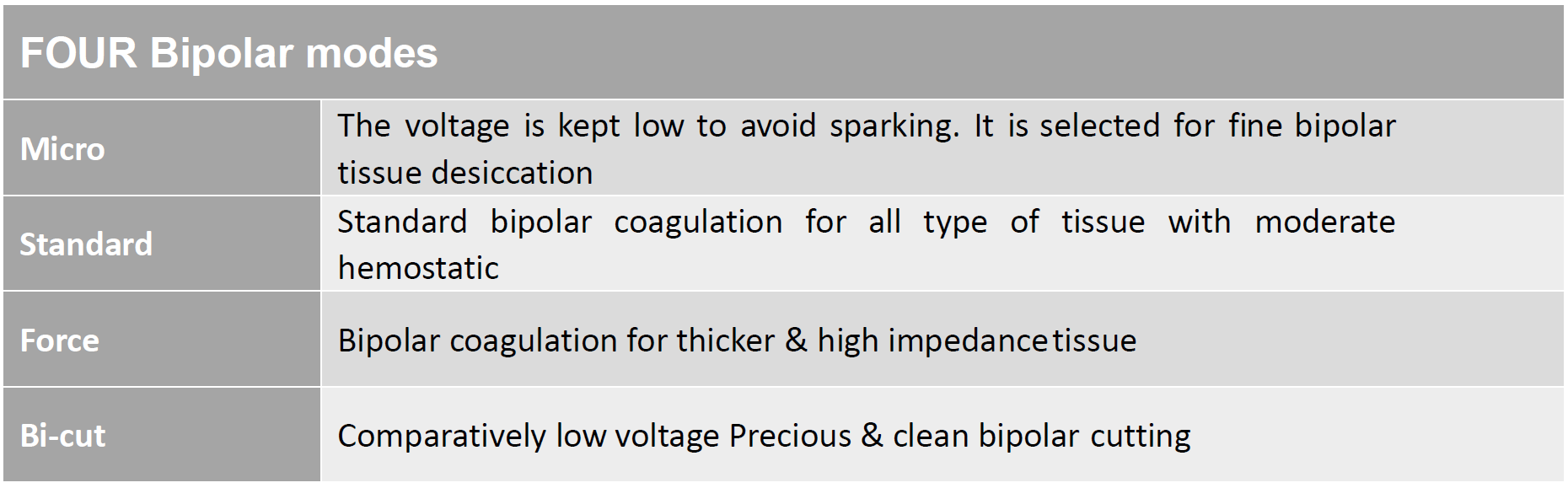

Wisdom Bipolar Electrosurgery

Provides Audio feedback alarm after completion of Bipolar Coagulation. This reduces charring & sticking of tissue to forceps & avoids the burning of tissue. Users can choose Auto Bi-Coag or Bi-Coag Alarm as per convenience.

Wisdom Endo - Cut

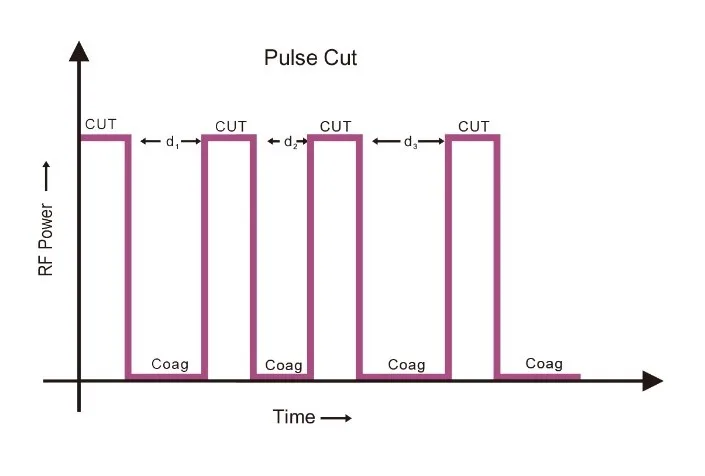

For polypectomy & papillotomy, cutting is smartly divided into cut & pause, so that coagulation occurs in each pause. The system is intelligent to change the pause interval as tissue density changes, hence produce fine cutting with a coagulation effect

-        Change in cut & pause as tissue demands.

-        d1, d2, d3 are dependent on the tissue impedance.
